Change and process the shape

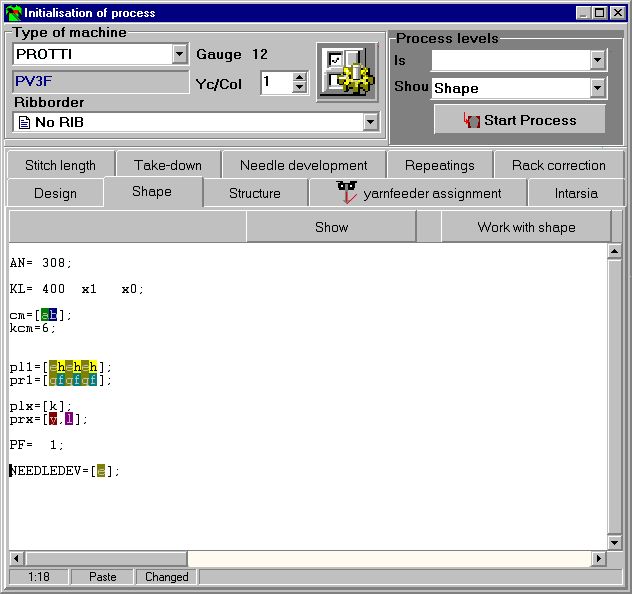

• Click on “\Process\Shape” to open the “Initialisation of process”-window;
• or Press the ALT F1-key ” to open the “Initialisation of process”-window;

The shape defines a square with 308 columns and 400 rows.

On the left and the right side is a special structure defined:

[ababab] and [bababa]

For more Information look to shape syntax

To change the height of the pattern to 200 lines :

KL= 200 x1 x0;

To change the width of the pattern to 100 columns:

AN= 100;

To change the width of the border from [ababab] to [aabaabaabaab]:

CM= [aab];

KCM= 12;

Create the shape in shape-level by pressing the “Sart Process”-Button.

Attention : if a Loaded ribis active, the height of the rib is not included in the “KL=” of the shape definition;
